JavaScript Support

NTE supports fully customizable control of rendering and other features using JavaScript. This page lists the various functions, objects, and types provided when using JavaScript with NTE.

The main purpose of this feature is to implement dynamic displays on trains with the intent to support many different types and displays found in trains all over the world.

By simplifying this process, it would be too hard to accurately reproduce how the system looks and works in real life and a lot of people would complain. This more complicated format is designed to let all sorts of logic and display types be implemented in the game without limiting creators too much. The downside to this is that now, all creators who want to create things will have to learn JavaScript to make use of these features.

JavaScript is a programming language that… in very simple terms, instructs computer to do stuff :D

It can describe logic, an example would be: If there's pineapple on top of the pizza, then remove the pineapple and eat the pizza, otherwise eat the pizza.

This rest of this article assumes that you have a basic understanding of JavaScript and JavaScript types, so it won't delve into the basic syntax and other aspects of it here. You can learn JavaScript from resources on the web, such as here.

While JavaScript is commonly associated with webpages or even server applications (via Node.js), NTE's implementation of JavaScript only utilize the language itself.

As such, this means that you only really need to care about the language itself (e.g. Variable & Function Declaration, conditional logic, built-in objects such as Date). Other stuff such as HTML/CSS/DOM manipulation does not apply to NTE Scripting.

Keep that in mind, as IDE (e.g. Visual Studio Code) may assume you are developing for a webpage and provides suggestions that are not applicable to our method of scripting!

Instead of each train having it's own script instance, your JS scripts are parsed (Or rather, executed) once during the resource pack loading. Your script are expected to have functions with specific name (e.g. create(), render(), dispose()).

These functions will be invoked by NTE with the parameter corresponding to a specific train/eyecandy/object, including a parameter (state) where you can store variables to that specific train.

Consider the following example of scripting applied to a train:

let displaySpeed = 1;

function create(ctx, state, train) {
     state.displaySpeed = 0.75;
}

function render(ctx, state, train) {
     state.displaySpeed++;
     console.log("dp: " + state.displaySpeed);
}

function dispose(ctx, state, train) {
}

console.log(displaySpeed);

An example output would be:

1 // The console.log at the bottom of the script, as the entire script is executed once during resource reload

dp: 1.75 // Train A rendering
dp: 2.75 // Train A rendering

// Assume Train B now enters the view

dp: 3.75 // Train A rendering
dp: 1.75 // Train B rendering

dp: 4.75 // Train A rendering
dp: 2.75 // Train B rendering

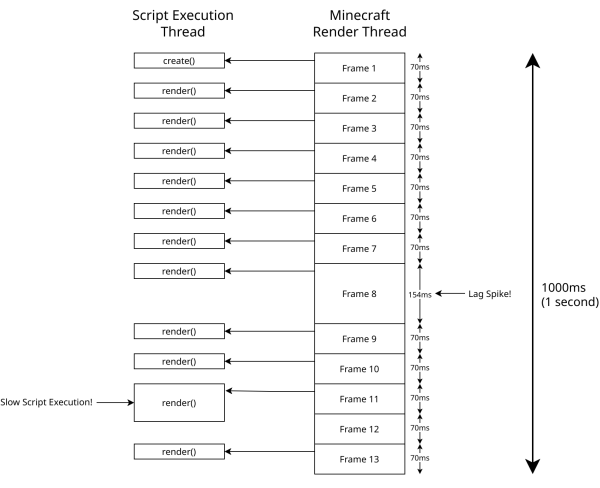

An example flow is available below. The following diagram assumes the player is running Minecraft at 13fps (For simplicity sake), which means 13 frames in 1 second.

Immediately you may have noticed the following thing:

This means that the script runs in the background and does not prevent the game from continue rendering (Therefore, less fps lag). Note that this does NOT mean you can freely block script execution or run some Thread.Sleep, as you would be blocking the script thread, making others (and your) script run slower!

More precisely, the render() function is executed every frame.

If there's a lag spike (Seen in Frame 8), your script would be not be called until the next frame came around, which is 154ms later in the above example.

As such, you should not assume that your function will always be called “x times per second”, or “xx ms after the last one”.

This also means that if you increment a variable by a fixed amount for each frame, that increment speed won't be the same if the fps is higher/lower.

Delta timing is used to solve this by obtaining the time since last frame, which can then be used to balance out the value.

While NTE tries to call the render() function for every frame, it is only made on a best-effort basis. If your script has not finished executing before the next frame came around, then your function won't be called again until it has finished execution.

JavaScript does not have anything, or not much to do with Java at all, even though they share “Java” in the name.

Under normal circumstances, no.

However the JavaScript Engine that NTE uses - Rhino, do allow using classes from the standard Java library as java.package.name. Using classes from MTR is not available yet, most likely due to problems with the class loader.

As you know, values ​​in JS have different types. When calling a function, you must pass parameters of the appropriate type, and the result it returns will also have a type. In this article, all of the functions have their parameter and return types stated. For example:

• static Resources.id(idStr: String): ResourceLocation

  • static means that you don't need to create an object to use this function, you can call Resources.id(“aaa:bbb”) directly.
  • idStr: String means that the idStr parameter accepts a string.
  • : ResourceLocation means that a function call will return a value of type ResourceLocation.

• Matrices.rotateX(radian: float): void

  • The lack of static means that an object is required to execute the function. For example, if a is an object of Matrices type, then the function can be called as a.rotateX(Math.PI).
  • radian: float means that the parameter takes a numeric argument. Although JS does not distinguish between integers and fractional numbers, this article will specify a specific type - int, long, float or double - to make it clear whether a parameter can accept decimal parts and to what precision.
  • : void means that the function has no return value.
  • : ResourceLocation means that a function call will return a value of type ResourceLocation.

If the script is executed incorrectly, NTE will report an error in the Minecraft log (starting with “Error in NTE Resource Pack JavaScript”), but there will be no in-game message. The error message will indicate which line of code in which script file the error occurred. Most launchers have the ability to display logs in a separate window in real time.

In addition, NTE pauses the script for 4 seconds and then tries to run it again.

NTE uses JavaScript's strict mode, which does not allow variables to be assigned without first declaring them.

This means you can't do local = 1 and expect local to be automatically defined.

Instead, you have use syntax like var glb; or outside a function var glb = 1;. For local variables inside a function, use let local; or let local = 1;.

[Translator's note: in general, it is better to always try to use let and resort to using var as a last resort].

The function you wrote are called once per frame by NTE, in which your function is expected to finish processing and return a value as soon/fast as possible. As such, there's no such concept as “wait for a while before continue executing”.

What you likely want to do instead is to do a thing later on, in which case you will need to time it and then execute the appropriate action on a call made at the right time.

If you are trying to execute a long-running operation (e.g. Fetching data over the internet), you should submit it to another thread/executor.

If blocks or infinite loops did occur, then the entire script execution will stall as scripts are executed one at a time [in the same thread]. In such situation, you can reset it with F3+T.

For common function types such as strings, Java and JavaScript have different class implementations, which causes there to be JavaScript strings as well as Java strings. NTE/MTR functions and fields return Java string classes rather than JavaScript strings, but Rhino does some conversions automatically, so in most cases you can mix and match, but sometimes this can cause problems.

For example, here's an example of a problem caused by using str.length() from a Java string class and str.length from a JavaScript string class to get the length of a string:

var stationName = train.getThisRoutePlatforms().get(0).station.name;
print(stationName.length); // Error: stationName is a Java string, not a JavaScript string
print(stationName.length()); // Java strings get their length from the length() function, not the JavaScript length field
print((""+stationName).length) // Use ""+ to turn it into a JavaScript string.

Similarly, there is a List<T> type in Java. It does the same thing as arrays in JavaScript, but has a different type. Trying to call JavaScript array functions on it won't work, but Rhino adapts it so that you can take values with list[0] or loop through them with for (a of list).

The Rhino engine does not support all of the latest JavaScript features. See Mozilla's documentation for details on what is supported. NTE uses Rhino 1.7.14 with the VERSION_ES6 flag enabled.

• static include(relPath: String): void

  • Loads and runs another JS file relative to the current JS file.

• static include(path: ResourceLocation): void

  • Loads and runs the JS file by location in the resource pack. For example, include(Resources.id(“mtr:path/absolute.js”)).
